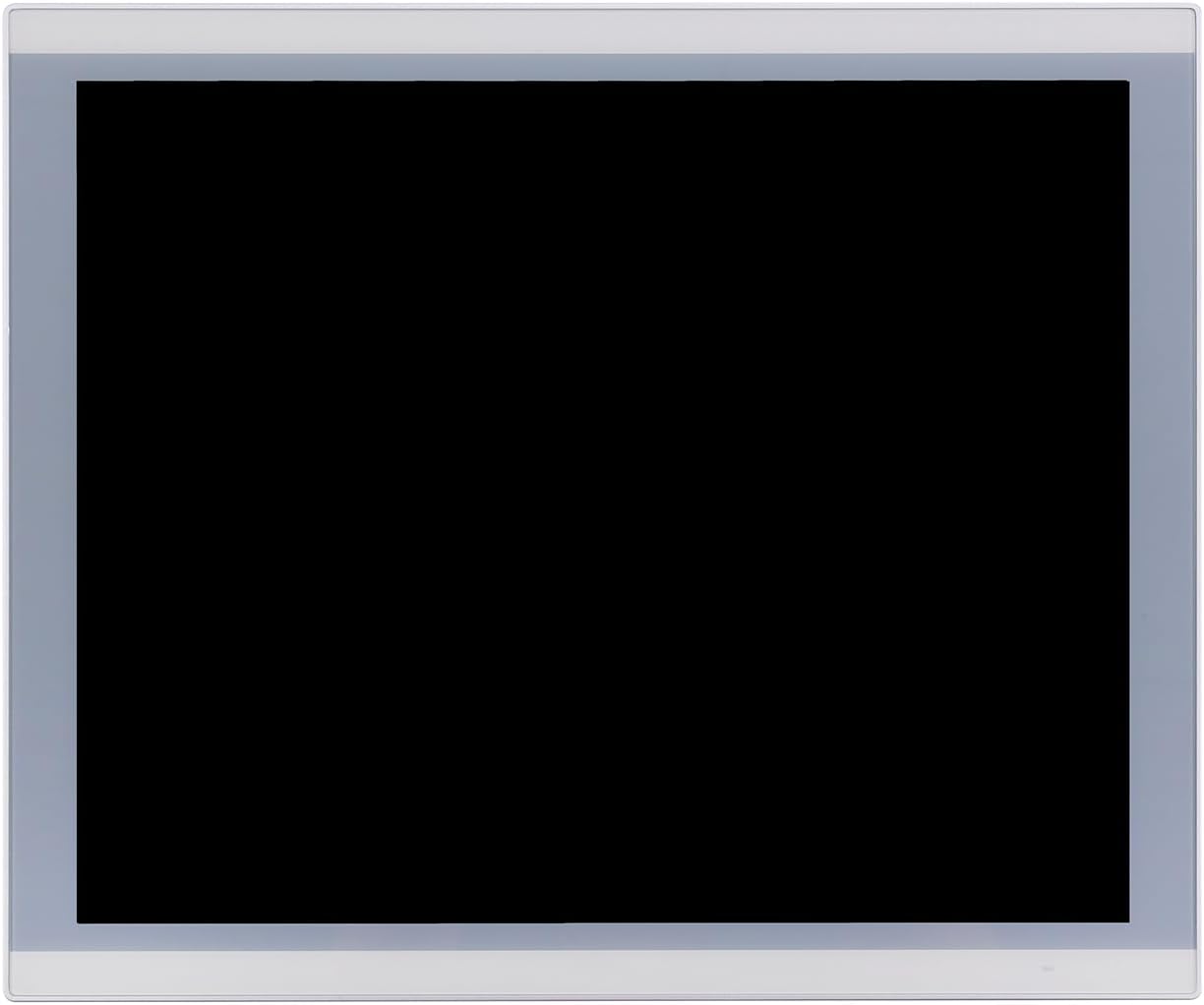

HUNSN 17″ TFT LED IP65 Industrial Panel PC, 10 Point Projected Capacitive Touch Screen, I5 1235U, Windows 11 / Linux Ubuntu, PW27, VGA, HDMI, 2 x LAN, 2 x COM, 0 RAM, 0 Storage, Barebone No System

Price: $920.99
(as of Mar 30, 2025 10:43:42 UTC – Details)

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW27
Panel: 17″ TFT LED panel, front panel protection IP65
CPU: Intel I5 1235U Processor 12M Cache, up to 4.40 GHz
Memory: 2 x SODIMM DDR4-3200, max. to 64GB RAM
Storage: 1 x M.2 2280 PCIE4.0 X4/SATA SSD, 1 x 2.5″ SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: 1 x M.2 Key E slot for WIFI6 CNVI, 1 x M.2 Key B slot for 4G/5G, default is 4G signal, 5G signal needs to contact us to customize, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 386.3 x 321.3 x 54mm
Weight: 4.6kgs
Opening Hole: 380 x 315mm
Resolution: 1280 x 1024
Perspective: 80(L), 80(R), 60(T), 60(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 95% @ 40°C without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V~19V
Packing List: HUNSN PW27 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc

17 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1280 x 1024 resolution, powered by intel i5 1235u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient
HUNSN PW27 designed with 12-19v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
Size at 386.3 x 321.3 x 54mm, 4.6kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
